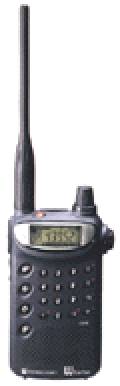

Standard C-510
| Type: |
Amateur VHF/UHF Transceiver |
| Frequency Range: |
144-146 / 430-440 MHz (Europe)
144-148 / 438-450 MHz (USA)
RX: 100-190 / 332-490 / 700-950 MHz |
| Modes: |
TX: FM
RX: AM/FM |
| RF Power output: |
Hi: 1/1 W
Lo: 300/300 mW |
| Voltage: |
3.3-8.4 VDC (4.5 VDC nominal) |
| Current Drain: |
RX: 11-70 mA
TX: 400-950 mA |
| Aerial Input: |
50 ohms, SMA |
| Dimensions (W*H*D): |
58*104*27 mm |
| Weight: |
210 gr (including battery & antenna) |
| Manufactured: |
Japan, 1997-19xx |
| Other: |
200 memories. CTCSS. DTMF
Optional power booster: CPB-510D, 50/35 W |
| Related Documents: |
Service Manual (17.9 MB) |
|
